ZUMR - II​

DAY / NIGHT SURVEILLANCE & TARGETING PAYLOAD​

ZUMR - Il is a high performance Multispectral Imaging payload with 24/7 Mission Capability with Enhanced Imagers. It is highly stabilized system with 2 LRUs (Line Replaceable Units)

Features​

High performance Multispectral Imaging
24/7 Mission Capability with Enhanced Imagers
Low Weight and Small Size Highly Stabilized System
2 LRUs (Line Replaceable Units)

Missions​

Tactical support
Aerial imagery
High performance EO/IR payload for precision munitions (LGB, Missile) delivery

Sensor Configuration
Enhanced Day Imager (Continuous Zoom)​

Resolution	752 x 582
Field of View:	Wide 24°H x 18°V Narrow 0.7°H x 0.5°V Zoom 34x (Optical)

Thermal Imager​

Resolution	640 x 512 FPA
Field of View:

Battlefield Damage Assessment Search and Rescue, Tactical Support

Technical Characteristics​

4 axis gyro stabilized system Azimuth 360° continuous Elevation 10° to — 110° Weight 49Kg

Power Requirement and Interface​

Voltage	24-32 VDC
Power	400 W (600 W max)
Video Interface	Analog, PAL
Serial Interface	RS232, RS422

Environmental​

MIL-STD-810F
MIL-STD-461E

Wide	24.3°H x 19.5°V
Medium-Wide	4.0°Hx3.2°V
Narrow	1.26°H x 1.0°V
Super-Narrow	0.63°Hx0.5°V (E-Zoom)

Laser Designator​

Range	20m -20Km
Energy	>85mJ
Code	NATO, Custom

Laser Pointer​

NVG Compatible (0.7W)

Platforms​

UAVs, Aircrafts, Helicopters, Naval Ships



[ghazi]



[ghazi]

Ranger Hybrid VTOL Surveillance UAV​

ByUmair Aslam
September 8, 2023

Ranger is a tactical UAV platform offering runway independent operations, high endurance, modularity, rapid emplacement, and a small ground footprint, which makes it an ideal choice for Intelligence, Surveillance, Target Acquisition, and Reconnaissance ISTAR) and Artillery Fire Correction (AFC) roles. Pakistan’s largest state-owned defense conglomerate, Global Industrial & Defence Solutions (GIDS) is offering this UAV at the international defense market.

With its industry-leading multi-sensor gimbal payload, comprising HD Electro-Optical ICO) and Medium Wave Infra-Red (MWR) sensor and Laser Range Finder (LRF), Ranger is capable of detecting, recognizing and identifying enemy targets during day and night missions.

FEATURES of Ranger Hybrid VTOL Surveillance UAV:​

• Vertical Take-off and Landing
• Reduced Operational footprint
• Autonomous missions
• Al enabled payload
• Automatic target detection & tracking
• Fault tolerant flight control system
• Redundant IMUS
• Auto Return to Base/Land in case of low battery & link failure
• Open System Architecture
• Small Mobile Ground Control Station
• Upto 8 hrs endurance with 9 kg paybad
• Radius of operation upto 100 km
• HD Digital Video & Data link
• Real-time target coordinates
• Low Repair/maintenance cost

SPECIFICATIONS of Ranger Hybrid VTOL Surveillance UAV:​

• MTOW: 65 kg
• Wingspan: 4.8m
• Length: 2.58m
• Radius Control (LOS): 100 km
• Endurance: 6-8hrs
• Cruise speed: 80-130km/h
• Typical cruise altitude: 2500-3500m (ACL)
• Maximum Altitude: 4500m (AMSL)
• Wind Resistance: Level 7 (28-37knots)

CAMERA

• 1920 x 1080
• EO Sensor-Resolution: (640X512) 1280 X 1024 MM
• IR Sensor-Resolution: (640X512) 1280 X 1024 MM
• Laser Range Finder: Upto 12000m

Ranger Hybrid VTOL Surveillance UAV - Global Defense Insight

Ranger is a tactical UAV platform offering runway independent operations, high endurance, modularity, rapid emplacement,

defensetalks.com



[ghazi]



[ghazi]



[ghazi]

Malaysian Deputy Minister of Defense, YB Adly Zahari, visited the GIDS Pavilion at the World Defense Show 2024 (WDS2024) in Riyadh, Saudi Arabia.



[ghazi]

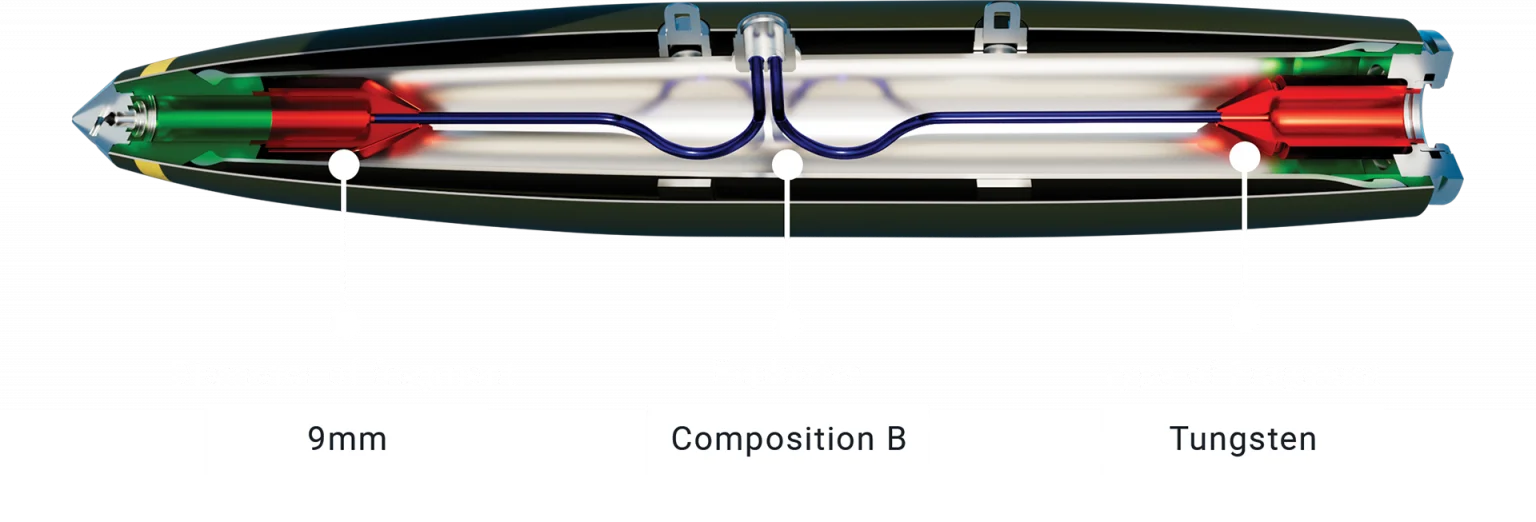

GIDS ER MLRS FATAH-I Advanced guided rocket system Fast reaction, long range, high accuracy, High density firepower.
Its mission is to precisely destroy enemy’s group / area targets : military bases, massive armored troops, missile launching sites, airports, harbors, facilities.



[ghazi]



[ghazi]

GIDS officials briefing the representatives of the 11 friendly countries about the combat capabilities of the Shahpar-II (Block-II) UCAV.



[ghazi]



[ghazi]

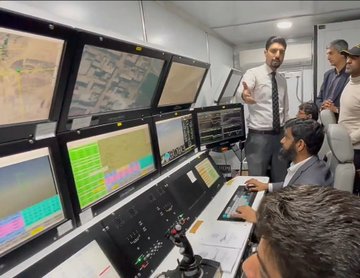

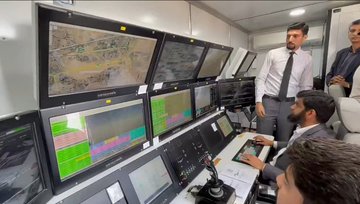

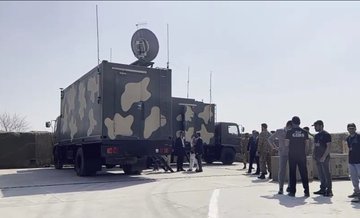

2 Vehicle GCS (LOS Config):
1x Control Vehicle
1x Comms Vehicle (LOS Dish)
(Expandable to 3 vehicles with addition of Satcom Module)
Total of 4 operator stations in the control vehicle per 1 system (2 UCAVs).
